4 cutting directions

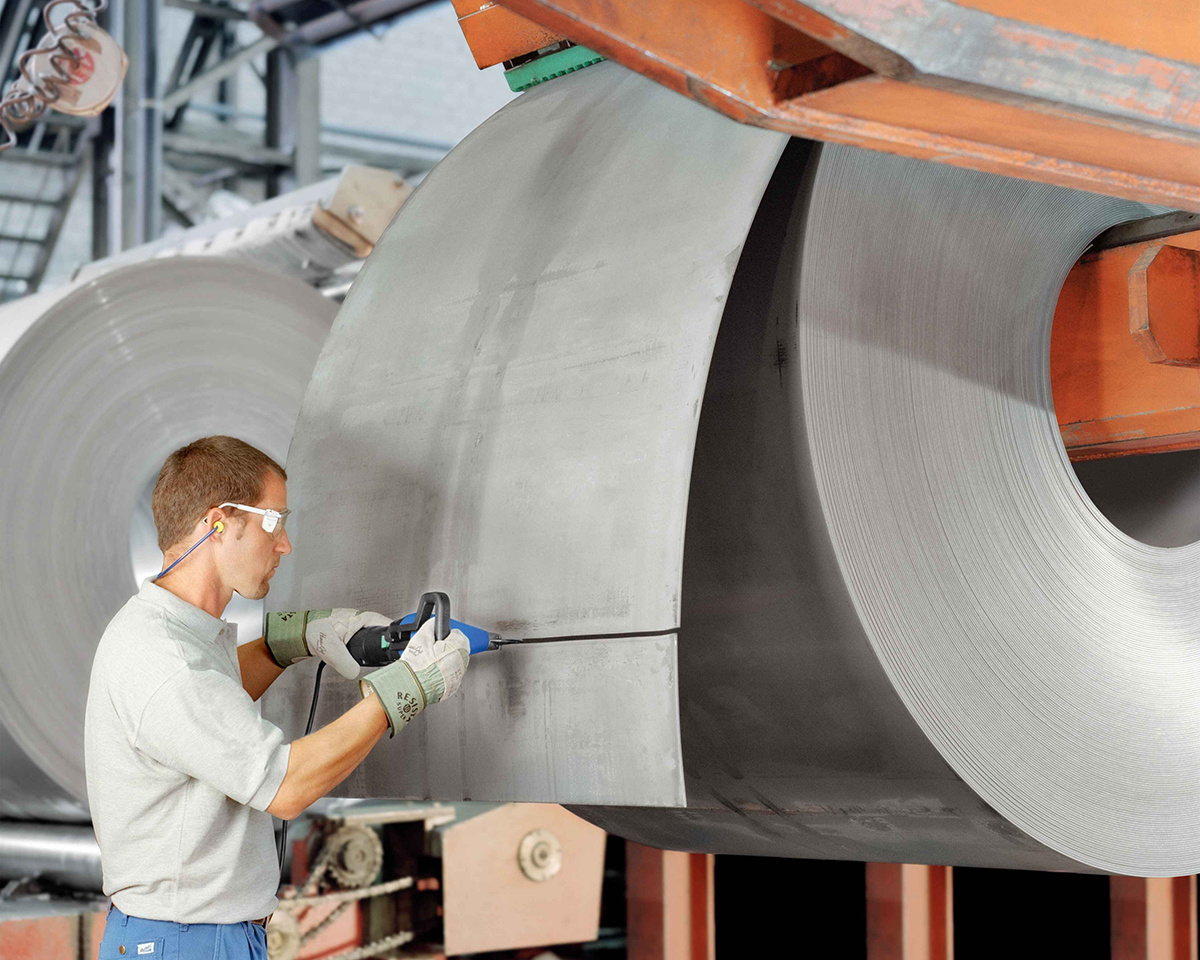

With the TruTool N 500, you can even cut in reverse. Since you can pull the tool toward you horizontally, it is ideal for relief cuts. You can also move the nibbler vertically downward for tank dismantling. All of this is achieved with minimal force and no emissions.
Variable speed
The speed control is highly efficient for work with scribed lines or with a template. It is also a very suitable choice for frequent processing of radii and stainless steel. You can adapt the working speed to the cutting task and the electronic overload protection offers yet another notable benefit. It has a protective effect on the motor.

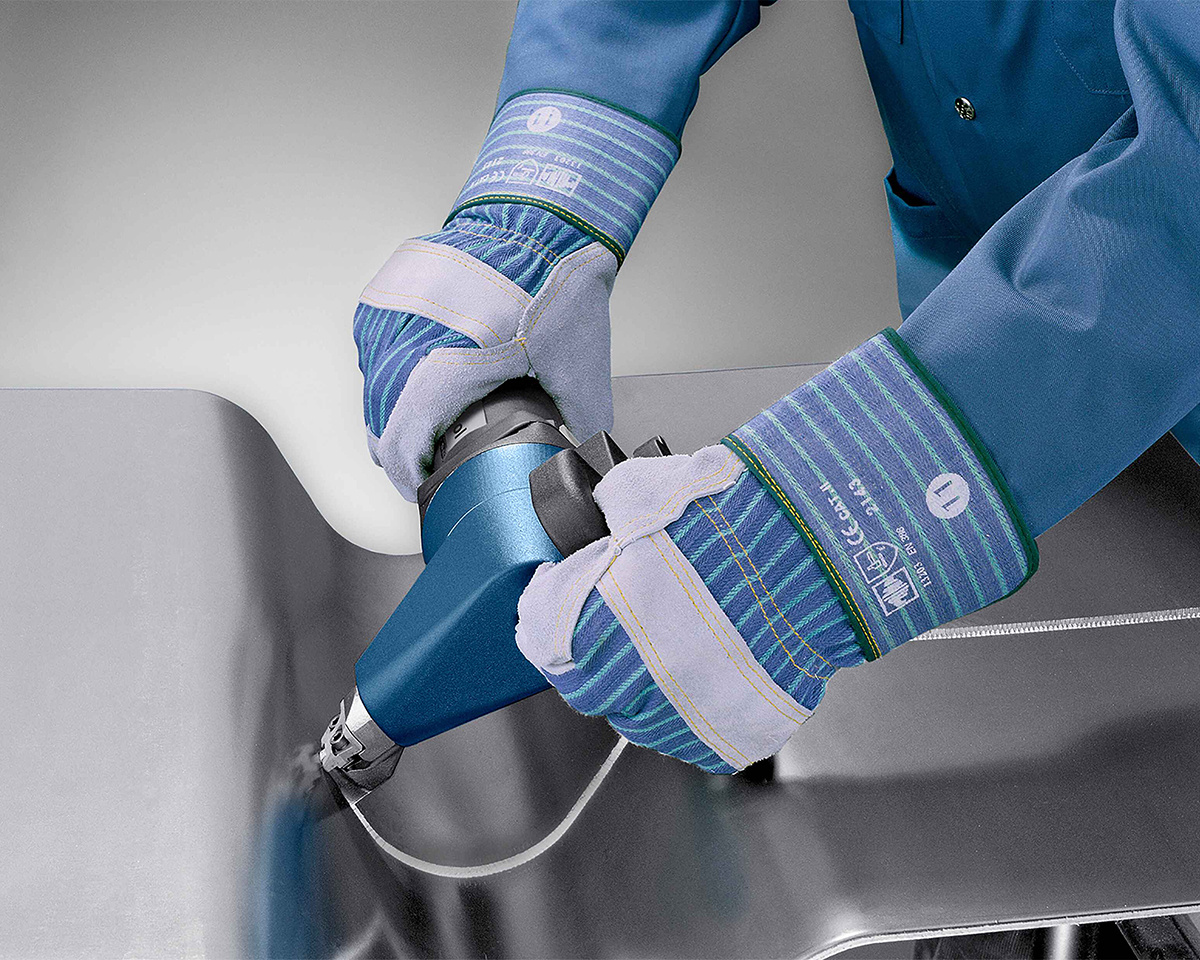

Perfect for processing stainless steel
The TruTool N 500 is well-suited to cutting high-tensile materials. Specifically designed punches and dies ensure perfect cuts.
The following consumables and the corresponding accessories are included in the scope of delivery:
- 1 tube of grease "G1"
- 1 die 5 (integrated)
- 1 punch 5/P5 (integrated))
- 1 allen key
- 1 TruTool N 500 handle
- 1 Trumpf box M3
| MAXIMUM SHEET THICKNESSES | |
| MAXIMUM SHEET THICKNESS, STEEL 400 N/MM² | 5 mm |
| MAXIMUM SHEET THICKNESS, STEEL 600 N/MM² | 3.2 mm |
| MAXIMUM SHEET THICKNESS, STEEL 800 N/MM² | 2.5 mm |
| MAXIMUM SHEET THICKNESS, ALUMINIUM UP TO 250 N/MM² | 7 mm |
| RADII | |
| SMALLEST RADIUS | 90 mm |
| GENERAL | |
| WORKING SPEED (MAX.) | 1.5 m/min |
| STARTING HOLE DIAMETER | 41 mm |
| NOMINAL POWER CONSUMPTION | 1700 W |
| DIMENSIONS | |
| LENGTH | 381 mm |
| HEIGHT | 235 mm |
| WEIGHT | |
| WEIGHT | 3.8 kg |
